Seven Oceans

Sent feedback.

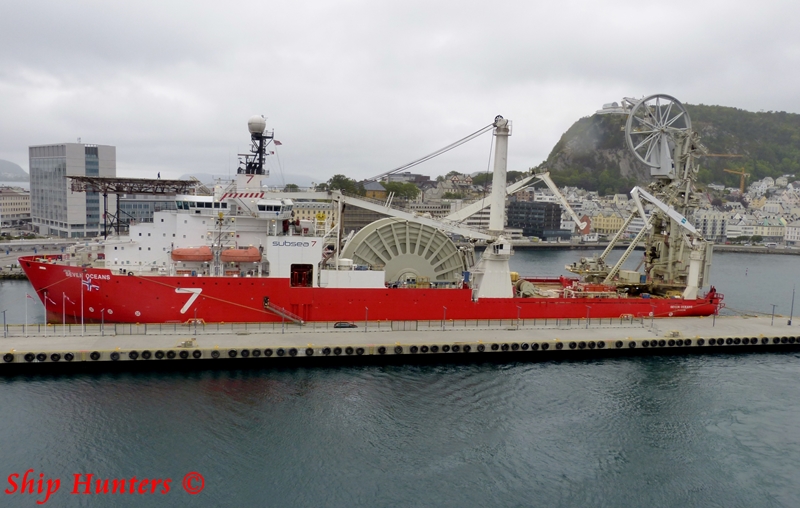

Photo 1
Author: Ship Hunters collection
Location: Alesund (NO)
Date: 27/06/2019

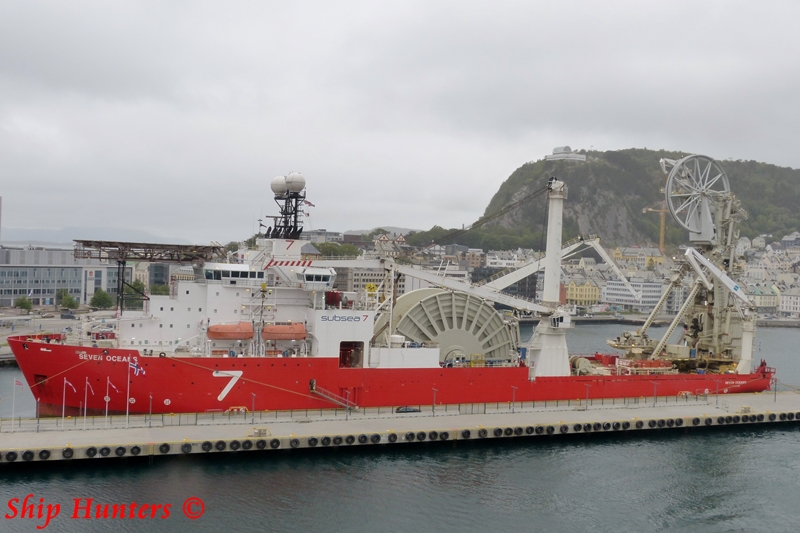

Photo 2
Author: Ship Hunters collection
Location: Alesund (NO)
Date: 27/06/2019
Administrative data Technical data
name: Seven Oceans
built: 2007
call sign: MQND3
IMO: 9358826
flag: Isle of Man
dimensions: 157.31 x 28.40 x 7.50 m
type: pipelay crane vessel
capacity: crane of 400T
main reel storage capacity of 3800T
6 to 16 inch diameter rigid pipeline
accommodation: 120 people
speed: 13.50 kn
former name(s): new name(s):
No known former names No known new names
We also have pictures of this vessel under the folowing name(s).
Extra info:
The vessel is fitted with one 3,800 tonne main deck mounted reel.
An optional piggy back reel can be fitted as required.The system is suitable for products from 6-inch to 16-inches in diameter.
The lay ramp system comprises of an aligner wheel, pipe straightener, 450t tensioner including dynamics (tensioner exceptional holding load of 550t including dynamics), 600t HOM clamp inc dynamics and roller box.
1x 500t and 1x 80t abandonment and recovery winches are provided.
The operational capability of the Lay system is 550t* (*including up to 100t back tension at main reel)
Converted? This vessel is still the same type as it was built.
Museum? No
Scrapping? Not scrapped on 22/11/2019.
Casualty? No
